HOSE REELS
A comprehensive range of high quality hose reels, both cased and open to handle automotive and industrial fluids. Cased hose reels are finished in powder coated steel, and uncased in both carbon and stainless steel. All models have been designed to give long trouble free service in arduous working conditions.
- Easy to install.
- Standard built-in swivel bracket.
- Steel enclosure.
- Up to 15 metre ½" hose
- Simple external maintenance

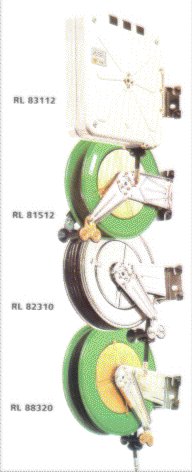

CASED HOSE REELS
A unique range of cased hose reels offering many unrivalled benefits. Ease of installation, built-in swivel brackets, extra long hose lengths, minimal maintenance. A quality product, manufactured in steel with attractive light grey powder coat finish.
| Model No. | Use | Hose Length | Control Valve |
| RL83112 | oil | 10m x ½" | extra |
| RL83114 | oil | 15m x ½" | extra |
| RL83210 | grease | 10m x ¼" | included |
| RL83215 | grease | 15m x ¼" | included |
Other models are available for air, water etc.
UNCASED HOSE REELS
A comprehensive range offering many of the features of the cased reels. Standard duty models will accept up to 15 metres of hose, available in both carbon and stainless steel. The heavy duty high capacity range will accept up to 25 metres of hose.
| Model No. | Use | Hose Length | Control Valve |
| RL81512 | oil | 10m x ½" | extra |
| RL81514 | oil | 15m x ½" | extra |
| RL88320 | oil | 20 x ½" | extra |
| RL88325 | oil | 25 x ½" | extra |
| RL88314 | oil | 14m x ¾" | extra |
| RL81610 | grease | 10m x ¼" | included |
| RL81615 | grease | 15m x ¼" | included |
Many other models are available. Please enquire for full details.
