GAZELLE

A COST EFFECTIVE WAY TO FILL CONTAINERS ON A CONVEYOR OR WEIGH PLATFORM

Gazelle

For a quotation on Permex Gazelle our check list can be located by clicking on the Info button.

Wetted parts in 316 Stainless Steel/PTFE.
304 Stainless steel exterior framework.
Adjustable filling height and reach.
For top or bottom-fill Filling Heads.

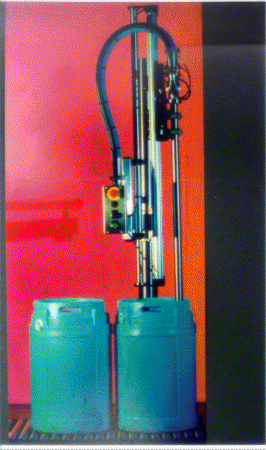

The Permex Gazelle has been developed especially for single container filling and is ideal for use with a conveyor. The filling arm is manually adjustable to accommodate different sized containers.

SPECIFICATION

Column	304 stainless steel tube, 102mm diameter, three-point fixing to the floor, 400mm diameter footprint.
Arm	304 stainless steel box section with clamps (one main clamp and one safety) Minimum arm height 500mm from floor. Maximum arm height 1800mm from floor. Minimum reach 200mm from column centre. Maximum reach 1200mm from column centre.
Finish	Brushed stainless steel
Liquid Line	Inlet connection 38mm RJT Male fitting on 316 stainless steel pipe with flexible PTFE lined hose (38mm n.b.) connection to filling head.
Control Box	304 stainless steel box mounted on the end of the filling arm or remotely, with space for up to four operator buttons.

OPTIONS

Top-Fill, Bottom-Fill or bottom-fill rising lance filling head.
Connecting hoses.
Valves for liquid control.
Polished finish.
Weigh Platforms.
Volume or mass flow meters.
Conveyors.
Fume removal.

If your particular requirements are not matched by this specification, please talk to us - we often build one-off machines.

In line with product development and improvement the specification may be changed without notice.
