AUTOFILL FILLING HEADS

AutoFill Filling Heads

AUTOFILL FILLING HEADS FOR:

  • Chemicals
  • Solvents
  • Potable Spirits
  • Food Stuffs
  • Fuel Oils

A range which are an integral part of Permex Liquid Filling Systems

Permex Autofill filling heads are a range of pneumatically operated filling heads just suited to the business end of any filling machine and will fill from 5 litres to 1000 litre containers. With either 316 Stainless or uPVC wetted parts and a range of seals, with the ability to fill containers from the top or the bottom and with a host of extras they offer a solution to practically any container filling problem.

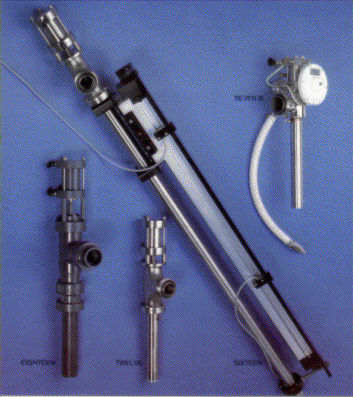

Type Fill Material Seals Closure Spout
Seven B Top 316 Nitrile 1 stage Internal with flow 38mm o.d. up to 450mm long with OFP
Seven C Top 316 Nitrile 1 stage Internal with flow 38mm o.d. up to 450mm long with OFP
Eight Top 316 Nitrile or Viton® 1 stage Internal with flow 38mm o.d. up to 450mm long with OFP
Ten Top 316 Nitrile or Viton® 2 stage Internal with flow 38mm o.d. up to 450mm long with OFP
Twelve Top 316 Nitrile, Viton® or Kalrez® 1 stage spout end against flow 38mm o.d. up to 450mm long with OFP
Fourteen Bottom 316 Nitrile or Viton® 1 stage spout end against flow 25mm o.d. 450mm long
Sixteen Top, Bottom or Raising 316 Nitrile, Viton® or Kalrez® 1 stage spout end against flow 25 or 38mm o.d. 900mm long
Eighteen Top uPVC Viton® 1 stage spout end against flow 38 or 40mm o.d. up to 300mm long with OFP
Twenty Top, Bottom or Raising uPVC Viton® 1 stage spout end against flow 40mm o.d. 900mm long
ACCESSORIES
  • the combined handle and head clamp (Autofill Seven to Twelve)
  • vapour removal hoods (All models)
  • steam jacketing (Autofill Twelve ONLY)
  • Permex LevelGuard OFP (an all-pneumatic over-fill protection system using positive or negative pressure sensing and capable of liquid level control within a 5mm band) ( Autofill Eight to Twelve and Eighteen)

We are always pleased to discuss the design and fabrication of filling heads for special applications or in alternative materials.

Kalrez® and Viton® are registered trademarks of DuPont Dow Elastomers.
