PANDA
A COST EFFECTIVE WAY TO FILL IBCs OR CONTAINERS ON PALLET
For a quotation on
Permex Panda our check list can be located by clicking on
the Info button.
- Increased Productivity
- Superb Accuracy
- Competitively Priced

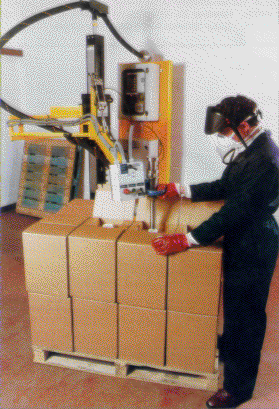

Pander to your every requirement with this filler! The Panda will deliver up to 250 litres a minute. This flexible machine is the ultimate in mixed container, on-pallet filling, for it's finger-tip height control reaches 1000 litre IBCs or pallets of 205 litre drums as easily as one, two or even three levels of smaller containers.
The Panda has all the advantages of hands-off filling including higher productivity and improved safety. Vapour hoods and overfill protection can also be provided.
SPECIFICATION
| Heavy-duty, floor mounted stanchion (trolley mounted version available) with arm height adjustable articulated filling arm | To fill containers from 500mm to approx. 1750mm high. |
| Span | Up to 5 pallets. |
| Movement | Arm height adjustable by central pneumatic
cylinder. Filling head up/down by air jack. Span adjusted manually. |
| Finish | Either epoxy coated mild steel on external surfaces with stainless steel and alloy fittings or all stainless steel. |
If your particular requirements are not matched by this specification, please talk to us - we often build one-off machines.
In line with product development and improvement the specification may be changed without notice.
